Manufacturer Demo TiLite ZRA Ultralight Titanium Wheelchair

TiLite (Model: ZRA)
List Price: $5,115.00
Price: $3,299.00

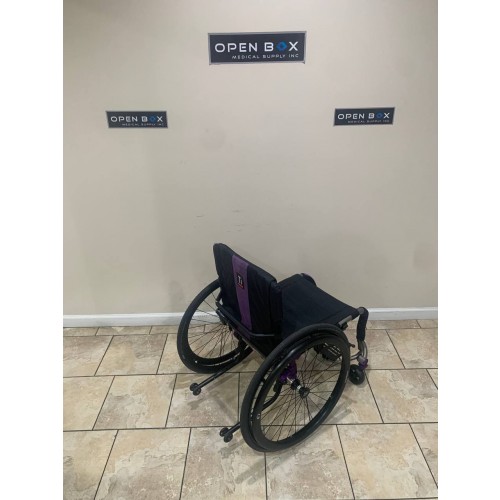

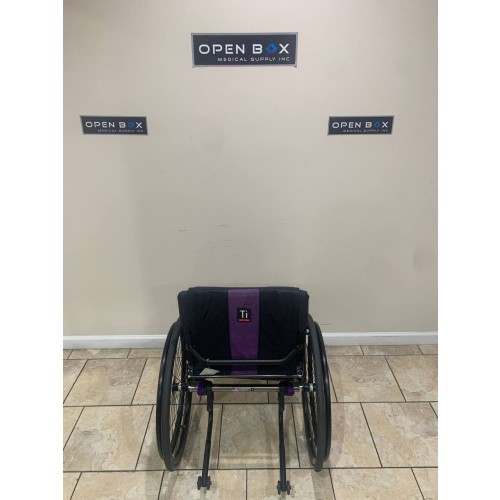

This Ultralight TiLite ZRA Wheelchair is a Manufacturer's Demo and is in Like-New Condition. This Titanium Frame Wheelchair features adjustable front and rear seat heights and angles, and is highly durable & lightweight for active users. Please view the description for a full list of features & upgrades.

The TiLite ZRA Ultra Lightweight wheelchair offers the fit of a custom frame and features adjustable front and rear seat heights and angles. The large 1.25” diameter tubing gives the mono-tube frame superior rigidity with unparalleled vibration dampening. The Standard Edition has wall tubing of .65 with a chair weight of 10.7 lbs and the SL Edition has wall tubing of .45 with a weight of only 8.7lbs. The ZRa comes in 20 frame finishes and 6 anodized color packages for individual customization.

With full adjustability and a minimalist mono-tube frame, the ZRA dishes out style without boundaries. Add the ZRA’s TiFit titanium frame, and you have the complete package. Strength, style, and the ability to set-up and configure your chair just for you.


Rigid frame chairs are the lightest and highest performing chairs because they are constructed from the fewest possible components and have the fewest moving parts.

Full Adjustability

The Tru-Fit system opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your wheelchair because you are not limited to a series of pre-set holes.

Mono-Tube Edge

Distinguished by a clean, modern look, the mono-tube frame’s 1.25″ tubing gives the ZRA strength and durability. The frame shape affords excellent transportability and easy placement on a car seat. Round off the ZRA’s frame with curved, ovalized caster arms.


The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.


Titanium absorbs vibration, won’t break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.

ZRA Innovation

The Tru-Fit System opens up the world of adjustability by incorporating an infinite adjustment mechanism. The Tru-Fit system allows you to fine tune the fit of your chair because you are not limited to a series of pre-set holes. Also, instead of bolting through frame-weakening holes, components clamp directly onto the frame. This eliminates one of the main stress points on today’s wheelchairs by reducing the number of holes in the frame.

Adjustable Camber Mount incorporates TiLite’s Tru-Fit system with up to 3.5″ of rear seat height adjustment.

The Precision Lock Caster System is a simplified and more accurate way to square your wheelchair in a matter of minutes. Precision Lock is the only caster system to feature a single-socket adjustment mechanism while offering an unrestricted range of movement.

Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels.

TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

Upgrades & Features

  • AZFS1 Aero Z Aluminum Frame $2575
  • Z2FS2 ZRA Titanium Frame $1350
  • Frame Finish Satin
  • ZAN03 Anodize Color Red Pepper $165
  • Rear Seat Width 16"
  • Seat Depth 18"
  • Front Seat Height 20"
  • Rear Seat Height 16.5"
  • Front Angle 85 degrees
  • ZFTR12 Flip-Back Footrests $215
  • Seat to Footrest 17"
  • Footrest Width 12" (1.5" Taper)
  • ZSB1 Folding Aluminum Adjustable Height
  • ZSB3 TiShaft Back Release Bars
  • ZSB11 Seat Back that Locks when Folded
  • ZSB12 4" Deep Backrest Rigidizer Bar
  • ZSB6 Integrated Push Handles
  • Seat Back Height 13.5"
  • Seat Back Angle 92 degrees
  • Center of Gravity 2.5"
  • ZCBR15 Aluminum Camber Tube
  • Camber 0 degrees
  • ZCBR12 Adjustable Rear Wheel Spacing Camber Plugs
  • ZCBR9 Additional Spacers to Increase Rear Wheel Spacing
  • Rear Wheel Spacing 1"
  • ZFK1 TiLite Standard Fork
  • Shadow Wheels by Out-Front $250
  • ZAXL1 Stainless Quick Release Axles
  • Anodized Aluminum handrims
  • ZBUP2 Back Upholstery Velcro Adjustable
  • ZSUP1 Tension Adjustable Bolt On Seat Upholstery
  • ZSUP7 iSleeve Under Seat Smartphone Holder
  • ZSDG2 Aluminum Small Side Guards Rigid Removable $190
  • ZARM1 Swing Away Armrests Tubular 9" to 12" $215
  • ZTIP1 Anti-Tips Rear Aluminum $155
Total Price with Upgrades: $5115
Seat Width 16″
Seat Depth 18″
Front Seat Height 20″
Rear Seat Height 16.5″
Seat to Footrest 17″
Seat Back Height 13.5" - 16.5"
Seat Back Angle 92°
Center of Gravity 2.5″
Rear Wheel Spacing 1″
Weight Capacity 265 lbs.

1-Month Warranty From Open Box Medical

If for some reason you are encountering problems with the medical equipment you purchased, you must first contact us by calling (818) 896-8772. If the purchased item is being used within our service area, we will schedule an appointment to send out a repair technician as soon as possible to diagnose the issue, and determine whether it can be fixed or not. If the item is not in our service area, depending on the location, we will either be able to send out a repair technician or have you ship the item back to us. The warranty is void if the item's ownership is transferred to a new owner, damaged due to misuse, accident, normal wear and tear, or if the equipment is used in any way that would void the original warranty offered by the manufacturer. For more information about our warranty, please contact us by calling (818) 896-8772 during our normal business hours.
